【ANSI】DN125美標橡膠伸縮節“長度130mm”

服務內容:【ANSI】DN125美標橡膠伸縮節“長度130mm”

簡介:【ANSI】DN125美標橡膠伸縮節“長度130mm” DN125 American rubber expansion joint "length 130mm" 上海淞江減震器集團有限公司官方網站橡膠接頭欄目為您介紹:【ANSI】DN125美標橡膠伸縮節“長度130mm”信息,......

【ANSI】DN125美標橡膠伸縮節“長度130mm”
DN125 American rubber expansion joint "length 130mm"

上海淞江減震器集團有限公司官方網站橡膠接頭欄目為您介紹:【ANSI】DN125美標橡膠伸縮節“長度130mm”信息,淞江集團是一家生產各種橡膠接頭產品的廠家,擁有自己工廠的一套生產工藝流程和管理體系,確保產品質量做到有記錄,有依據,有檔案。
Shanghai Meijiang Shock Absorber Group Co., Ltd. Official Website Rubber Joint Column for you to introduce: [ANSI] DN125 U.S. standard rubber expansion joint "length 130mm" information, Meijiang Group is a manufacturer of various rubber joint products, has its own factory production process and management system to ensure that product quality is achieved. Records, evidence and archives.

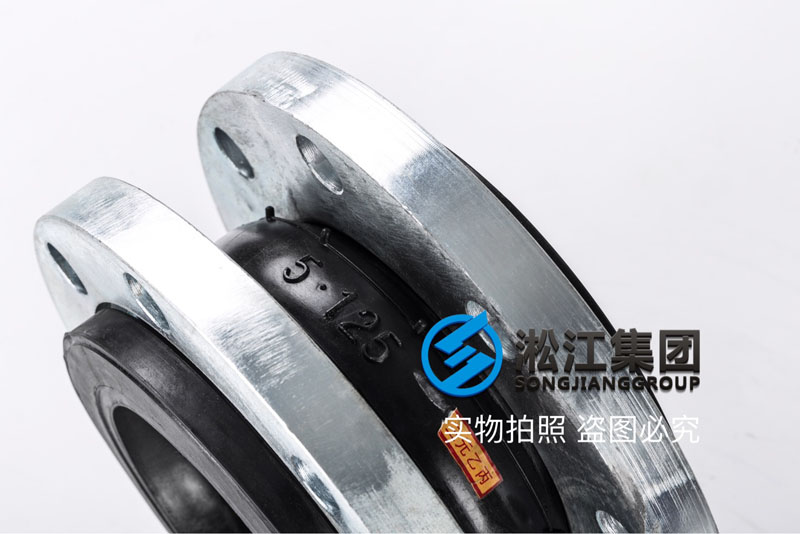

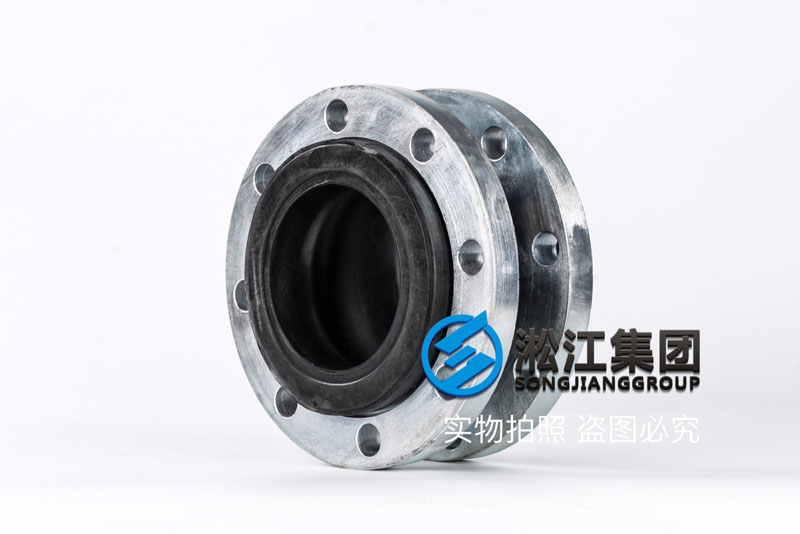

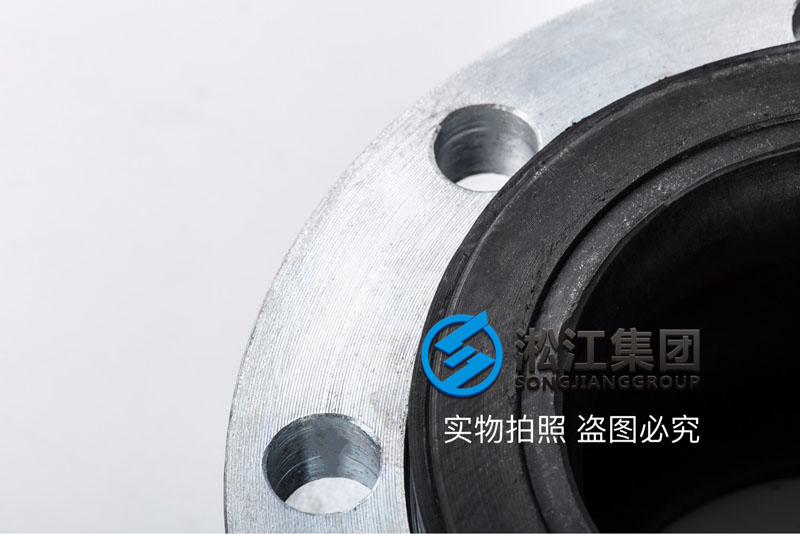

一、ANSI美標橡膠伸縮節實物拍照:
【ANSI】DN125美標橡膠伸縮節“長度130mm”
【ANSI】DN125美標橡膠伸縮節“長度130mm”
【ANSI】DN125美標橡膠伸縮節“長度130mm”
【ANSI】DN125美標橡膠伸縮節“長度130mm”
二、ANSI美標橡膠伸縮節介紹:
名稱:美標橡膠伸縮節
型號:ANSI-150LB
口徑:DN125(5寸)
了解該產品更多型號參數表請點擊:【樣冊P41】美洲標準橡膠膨脹節
質保:3年
優點:減震、降噪、補償管道、可偏轉、可位移。
介質:海水,120度以下弱酸堿。
生產廠家:上海淞江減震器集團有限公司

Essential information:
Name: American rubber expansion joint
Model: ANSI-150LB
Caliber: DN125 (5 inches)
Warranty: 3 years
Advantages: shock absorption, noise reduction, compensation for pipeline, deflection and displacement.
Medium: sea water, weak acid and base below 120 degrees.
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
橡膠性能參數:
安裝長度:130mm(150mm)
軸向拉伸:6mm
軸向壓縮:10mm
橫向位移:12mm
偏轉角度:8°
橡膠:三元乙丙橡膠(淞江集團所有三元乙丙橡膠全部采用三井4045,含量在50%左右,有材質證明,有含量檢測報告,也有國家型式試驗中心的產品檢測報告和性能檢測報告等證書。)

Rubber performance parameters:
Installation length: 130mm (150mm)
Axial tension: 6mm
Axial compression: 10mm
Lateral displacement: 12mm
Deflection angle: 8 degrees.
Rubber: Ethylene-propylene-diene rubber (all the Ethylene-propylene-diene rubber of Songjiang Group adopts Mitsui 4045, the content is about 50%, there are material proof, there are content testing reports, there are also national type testing center product testing reports and performance testing reports and other certificates.)
法蘭參數:
標準:ANSI-150LB
法蘭外徑:255mm
螺栓孔中心距:216mm
螺栓孔徑:22mm
螺栓孔數:8
壓力:150LB(PN20)
法蘭:碳鋼(Q235)
Flange parameters:
Standard: ANSI-150LB
Flange diameter: 255mm
Center distance of bolt hole: 216mm
Bolt diameter: 22mm
Bolt hole number: 8
Pressure: 150LB (PN20)
Flange: carbon steel (Q235)

三、ANSI美標橡膠伸縮節發貨現場:

【ANSI】DN125美標橡膠伸縮節“長度130mm”

四、ANSI美標橡膠伸縮節工廠介紹:

【ANSI】DN125美標橡膠伸縮節“長度130mm”
【ANSI】DN125美標橡膠伸縮節“長度130mm”
【ANSI】DN125美標橡膠伸縮節“長度130mm”
【ANSI】DN125美標橡膠伸縮節“長度130mm”
