FKMCASE SHOW

【FKM】DN100氟橡膠撓性接管“實體工廠”

服務內容:【FKM】DN100氟橡膠撓性接管“實體工廠”

簡介:【FKM】DN100氟橡膠撓性接管“實體工廠” DN100 fluorine rubber flexible takeover entity factory 上海淞江減震器集團有限公司官方網站為您介紹:【FKM】DN100氟橡膠撓性接管“實體工廠”信息,淞江集團是一家......

【FKM】DN100氟橡膠撓性接管“實體工廠”
DN100 fluorine rubber flexible takeover entity factory

上海淞江減震器集團有限公司官方網站為您介紹:【FKM】DN100氟橡膠撓性接管“實體工廠”信息,淞江集團是一家生產各種橡膠接頭產品的廠家,擁有自己的實體工廠,新工廠搬遷至南通雙甸工業集中區,歡迎新老客戶到我廠實地參觀考察,以下是DN100氟橡膠撓性接管實物拍照。
The official website of Shanghai Meijiang Shock Absorber Group Co., Ltd. [FKM] DN100 Fluororubber Flexible Takeover "Entity Factory" Information, Meijiang Group is a manufacturer of various rubber joint products, with its own entity factory, new factory moved to Nantong Shuangdian Industrial Concentration Zone, welcome new and old customers to our factory. The following is the photo taking of DN100 fluorine rubber flexible pipe.

一、DN100氟橡膠撓性接管優點介紹:

氟橡膠生產的橡膠接頭具有良好的耐酸性和耐高溫性,其耐酸性比三元乙丙橡膠要好很多,可以耐強酸,耐高溫性能可以達到120度以下,而且還可以同時適用于含有油性的介質。
The rubber joint produced by fluororubber has good acid and alkali resistance and high temperature resistance, and its acid and alkali resistance is much better than EPDM rubber. It can resist strong acid and alkali, and its high temperature resistance can reach 120 degrees below.

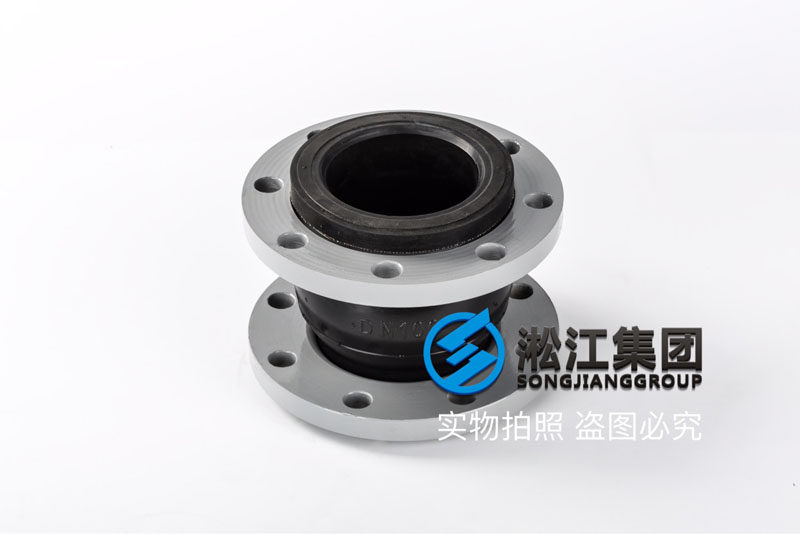

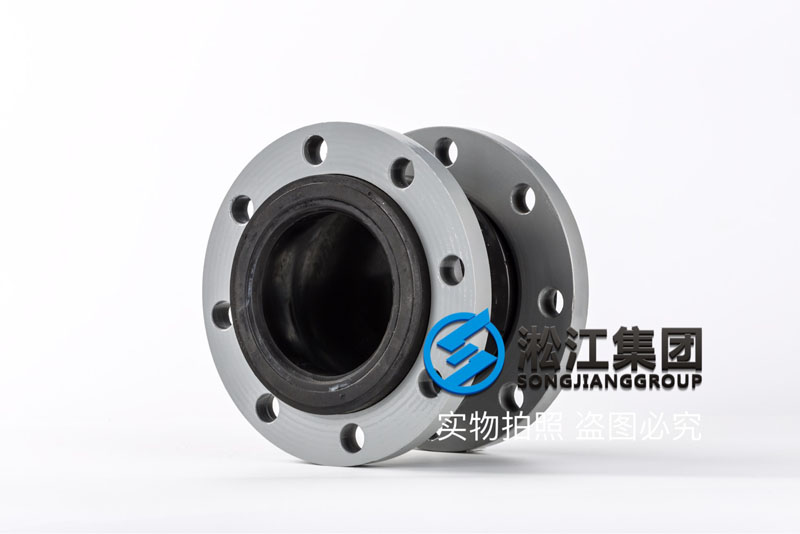

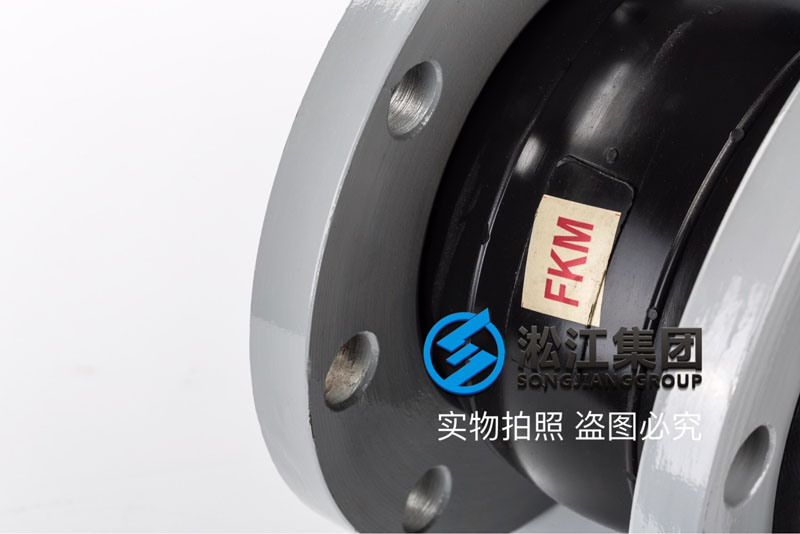

二、DN100氟橡膠撓性接管實物拍照:

【FKM】DN100氟橡膠撓性接管“實體工廠”
【FKM】DN100氟橡膠撓性接管“實體工廠”
【FKM】DN100氟橡膠撓性接管“實體工廠”
【FKM】DN100氟橡膠撓性接管“實體工廠”
【FKM】DN100氟橡膠撓性接管“實體工廠”
三、DN100氟橡膠撓性接管參數介紹:
名稱:氟橡膠撓性接管
型號:DN100
安裝長度:150mm
軸向壓縮:18mm
軸向伸長:10mm
軸向拉伸:10mm
橫向位移:12mm
偏轉角度:15°
標準:GB/T 9119-2000
壓力:PN16
法蘭:碳鋼 / 球墨
介質:強酸、高溫140度以下
質保:1年
橡膠材質:氟橡膠(FKM)
使用優點:減震、降噪、保護管道設備的長期使用,降低維修成本。
了解該產品更多型號參數表請點擊:【樣冊P33】KXT型可曲撓橡膠接頭
生產廠家:上海淞江減震器集團有限公司
資質證書:合格證、質保書、檢驗報告、德國萊茵TUV認證、國家型式試驗報告、第三方性能檢測報告、材質報告等。
淞江集團橡膠接頭生產流程:原材料檢測-小料自動配料-大料自動配料-自動混煉-自動成筒-自動成型-自動硫化-質量檢測-實驗室檢測-交付客戶
Name: fluorine rubber flexible pipe
Model: DN100
Installation length: 150mm
Axial compression: 18mm
Axial elongation: 10mm
Axial tension: 10mm
Lateral displacement: 12mm
Deflection angle: 15 degrees.
Standard: GB/T 9119-2000
Pressure: PN16
Flange: carbon steel / spheroidal graphite
Medium: acid base, high temperature below 140 degrees.
Warranty: 1 years
Rubber material: fluorine rubber (FKM)
Advantages: shock absorption, noise reduction, protection of pipeline equipment for long-term use, and reduction of maintenance costs.
Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.
Qualification Certificate: Qualification Certificate, Quality Guarantee, Inspection Report, TS Pressure Pipeline Production License of Rubber Joint Industry, National Type Test Report, Third Party Performance Test Report, Material Report, etc.
Production Process of Rubber Joints in Songjiang Group: Raw Material Testing - Automatic Blending of Small Material - Automatic Blending of Large Material - Automatic Mixing - Automatic Barrel Forming - Automatic Forming - Automatic Vulcanization - Quality Testing - Laboratory Testing - Delivery to Customers

四、以下是DN100氟橡膠撓性接管工廠介紹:
The following is the introduction of Songjiang group

【FKM】DN100氟橡膠撓性接管“實體工廠”
【FKM】DN100氟橡膠撓性接管“實體工廠”
【FKM】DN100氟橡膠撓性接管“實體工廠”
【FKM】DN100氟橡膠撓性接管“實體工廠”

除了氟橡膠可以耐強酸之外,還有一款內襯四氟橡膠接頭也可以耐強酸堿,內襯四氟耐強酸堿的性能比氟橡膠還要好,價格和氟橡膠價格都差不多,如需了解請點擊:PTFE內襯聚四氟乙烯橡膠接頭
