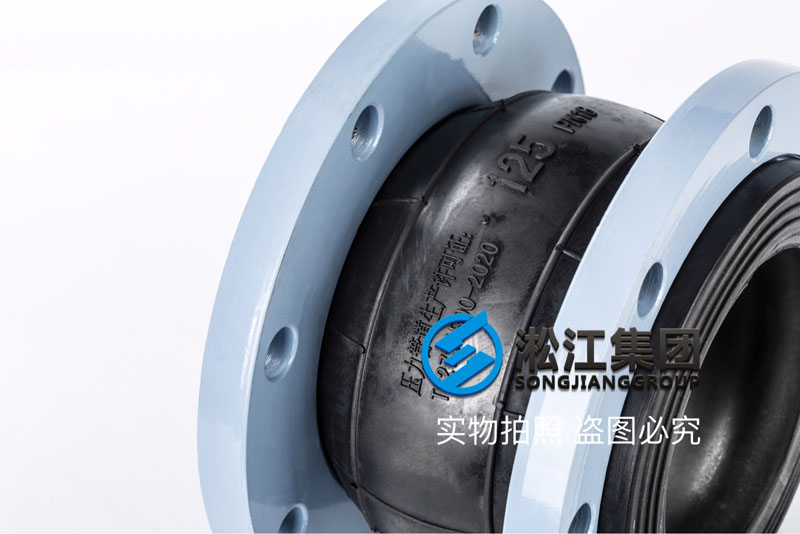

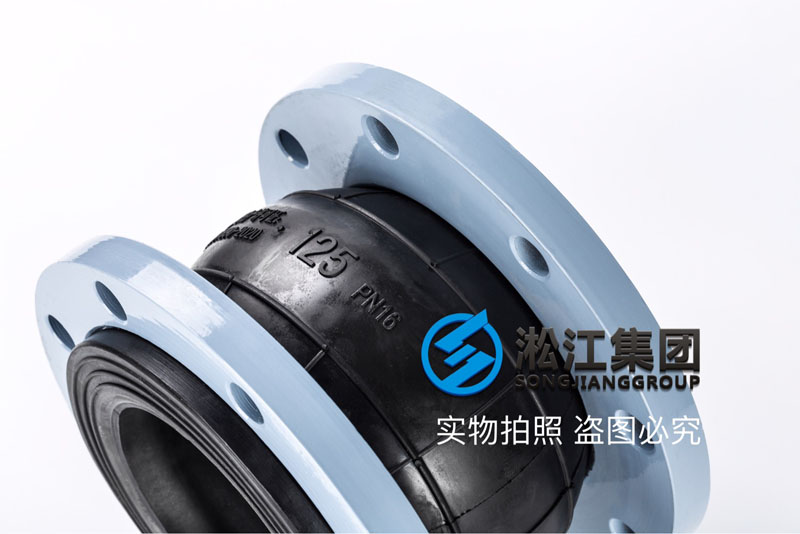

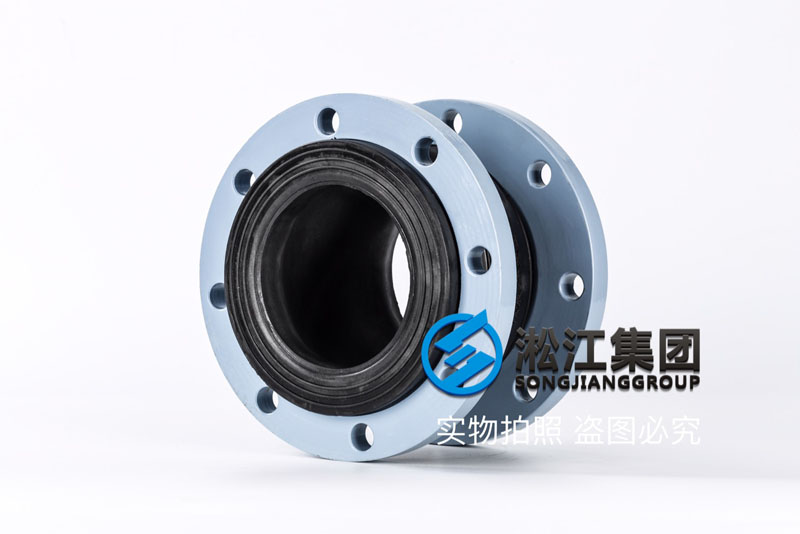

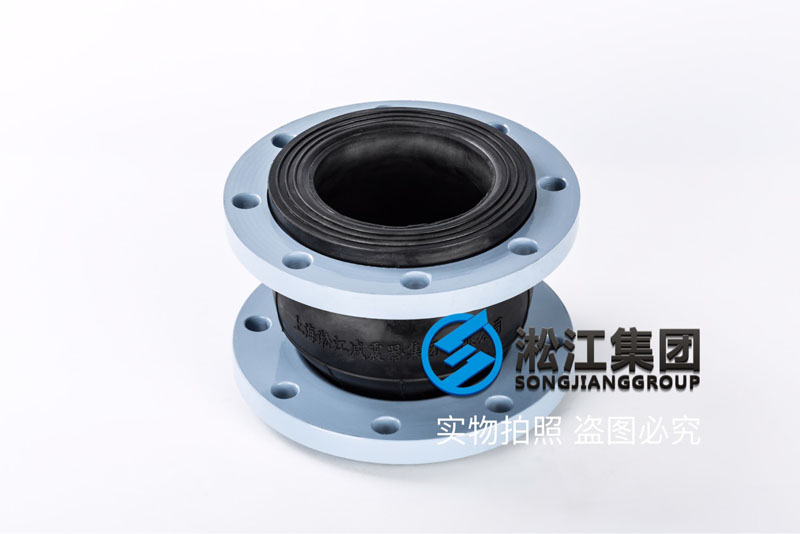

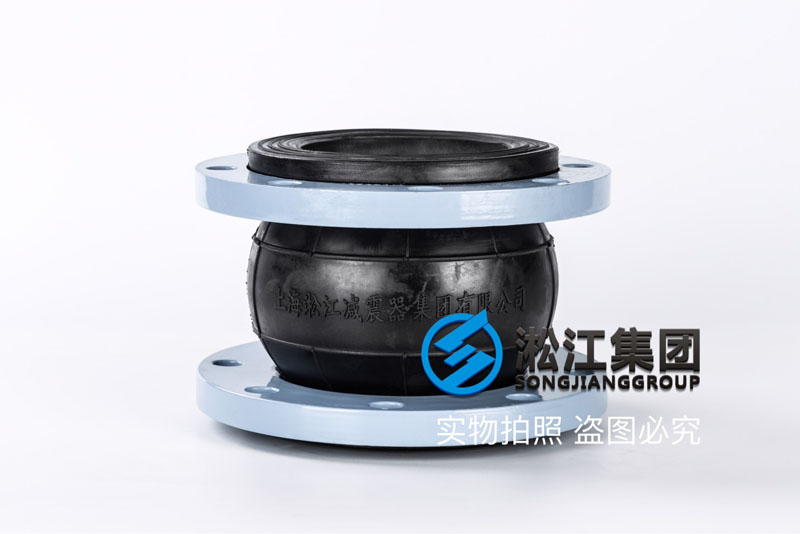

【NR】DN125單球橡膠接頭“熱交換機組的好幫手”
DN125 single ball rubber joint "good helper of heat exchange unit"

上海淞江減震器集團有限公司官方網站為您介紹：【NR】DN125單球橡膠接頭“熱交換機組的好幫手”信息，淞江集團為眾多熱交換機組生產廠家配套高壓橡膠接頭，壓力16kg，質保3年，以下是詳細介紹。
The official website of Shanghai Songjiang Shock Absorber Group Co., Ltd. introduces for you: [NR] DN125 single ball rubber joint "good helper of heat exchanger" information, Songjiang Group is a high-pressure rubber joint for many heat exchanger manufacturers, pressure 16kg, quality assurance for 3 years, the following is a detailed introduction.

名稱：單球橡膠接頭	點擊下載圖紙
型號：KXT-NR 口徑：DN125 壓力：1.6Mpa 長度：165mm 橡膠材質：天然橡膠（云象 / 東風1#） 法蘭材質：碳鋼；另有球墨、不銹鋼、PVC

法蘭標準：GB/T 9119-2000 （除此法蘭標準之外，我廠還可以配套更多法蘭標準，如需了解其他法蘭標準請點擊：橡膠接頭法蘭標準）

適用介質：普通水、空調水、溫度80度以下；（各種酸堿、油類、粉狀等特殊介質不能用，要選擇特殊材質才可以使用；）
其他介質：弱酸堿、120度高溫請點擊：EPDM三元乙丙橡膠接頭；
液壓油介質請點擊：NBR丁腈橡膠接頭；
強酸堿、航空煤油、汽油、柴油請點擊：PTFE四氟橡膠接頭

使用優點：減震、降噪、保護水泵設備的長期使用，降低維修成本。

質保期限：36個月

相關鏈接：橡膠接頭性能檢測報告

生產廠家：上海淞江減震器集團有限公司

資質證書：合格證、質保書、檢驗報告、德國萊茵TUV認證、國家型式試驗報告、第三方性能檢測報告、材質報告。

安裝教程鏈接：橡膠接頭安裝說明

Name: single ball rubber joint

Model: KXT-NR

Caliber: DN125

Pressure: 1.6Mpa

Length: 165mm

Rubber material: natural rubber (cloud Elephant / Dongfeng 1#)

Flange material: carbon steel / ductile QT450 / stainless steel.

Flange standard: GB/T 9119-2000 (in addition to this flange standard, our factory can also support more flange standards, if you need to know other flange standards, please click: rubber joint flange standard)

Applicable media: ordinary water, air conditioning water, temperature below 80 degrees; (various acid-base, oil, powder and other special media can not be used, to select special materials can be used;)

Other media: weak acid and alkali, 120 degree high temperature, please click: EPDM rubber joint;

Hydraulic oil medium please click: NBR rubber joint;

Strong acid base, aviation kerosene, gasoline and diesel oil please click: PTFE rubber joint.

Advantages: shock absorption, noise reduction, protection of water pump equipment for long-term use, reduce maintenance costs.

Warranty period: 36 months.

Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.

Qualification Certificate: Qualification Certificate, Quality Assurance Certificate, Inspection Report, TS Pressure Pipeline Production License of Rubber Joint Industry, National Type Test Report, Third Party Performance Test Report, Material Report.

三、熱交換機組單球橡膠接頭發貨現場：

四、合肥京東方空調系統動力泵房橡膠接頭案例：

五、熱交換機組介紹：

熱交換機組，即換熱機組，是進行熱交換的設備。

六、熱交換機組單球橡膠接頭工廠介紹：

相關鏈接：橡膠接頭工程案例
